Characteristic of the RFCT

  Sensitivity   1 pC ±1%

  Current to voltage ratio   10 mV/A
  Output resistance   50 Ω
  Maximum peak current   500 A
  Maximum rms current   10 A(CTI-200) /15A(CTI-300)
  Droop rate   1.0 %/:s
  Useable rise time   15 ns (approximate)
  Current time product   1.5 mA•s maximum
  Low frequency 3 dB point   1500 Hz (approximate)
  High frequency 3 dB point   200 MHz (approximate)
  I/f figure   0.008 Arms/Hz
  Output connector   BNC (UG-290A/U)
  Operating temperature   -40 to 85 ℃
  Weight   524 g

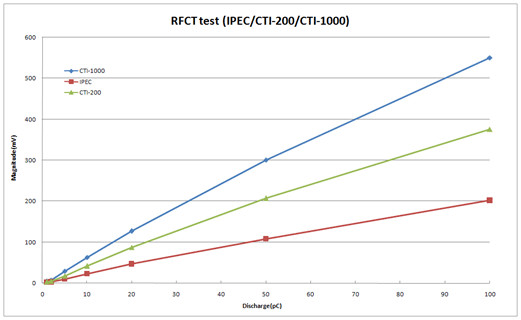

pC
CTI-1000
IPEC
CTI-200

1

4.3

1.76

3.38

2

7.1

2.84

5.04

5

29.3

10.3

18

10

62.8

22.8

41.8

20

127

46.8

87.2

50

301

108

207

100

550

202

376

;
